HCC 2000 Automated pH/ORP Controller Buying Guide | ||||
รุ่น | ช่วงของค่าที่แสดงผล pH | ช่วงของค่าที่แสดงผล ORP | กำลังไฟเข้า | น้ำหนัก |
HCC2000 | pH 0.0-9.9 | ORP 5-995 mV | 240 VAC 50/60 Hz | 5.0 กก. |
HCC 2000 – CP Automated pH/ORP Controller Buying Guide | |||||||
รุ่น | ช่วงของค่าที่ แสดงผล pH |
ช่วงของค่าที่ แสดงผล ORP |
Power Supply ปั๊ม | กำลังไฟฟ้า ที่ปั๊มใช้ |
สมรรถนะปั๊ม | แรงดันสูงสุดของปั๊ม | น้ำหนัก |
HCC2000 – CP | pH 0.0-9.9 | ORP 5-995 mV | 24-240 VAC | 3.5 W | 6.34 GPD | 22 PSI | 9.1 กก. |
รุ่น | Description | Dimension (mm.) | |||
A | B | C | D | ||

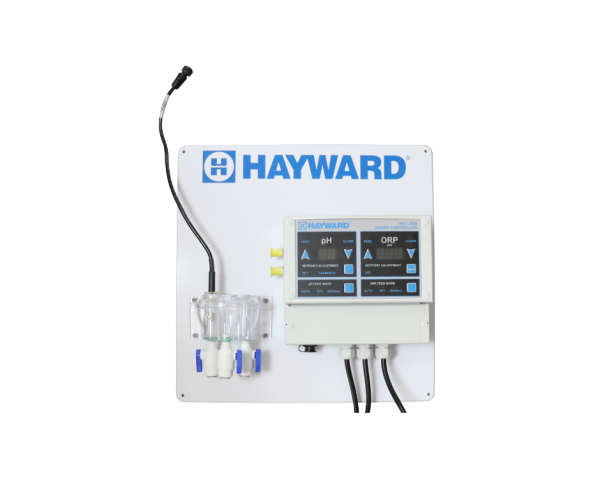

CC-HA-HCC2000 | Chemical Controller pH & ORP without Chemical Feed Pump Display Range pH 0.0-9.9/ ORP 5-995 MV,Power Input 240V-50/60 Hz Interface UV pretected Lexan membrane switch Flow Cell Injection molded Flow Cell with integral baffels Flow sensor Float-Style magnatic Flow Switch |
402 | 355 | 88 | 184 |
รุ่น | Description | Dimension (mm.) | ||||
A | B | C | D | E | ||

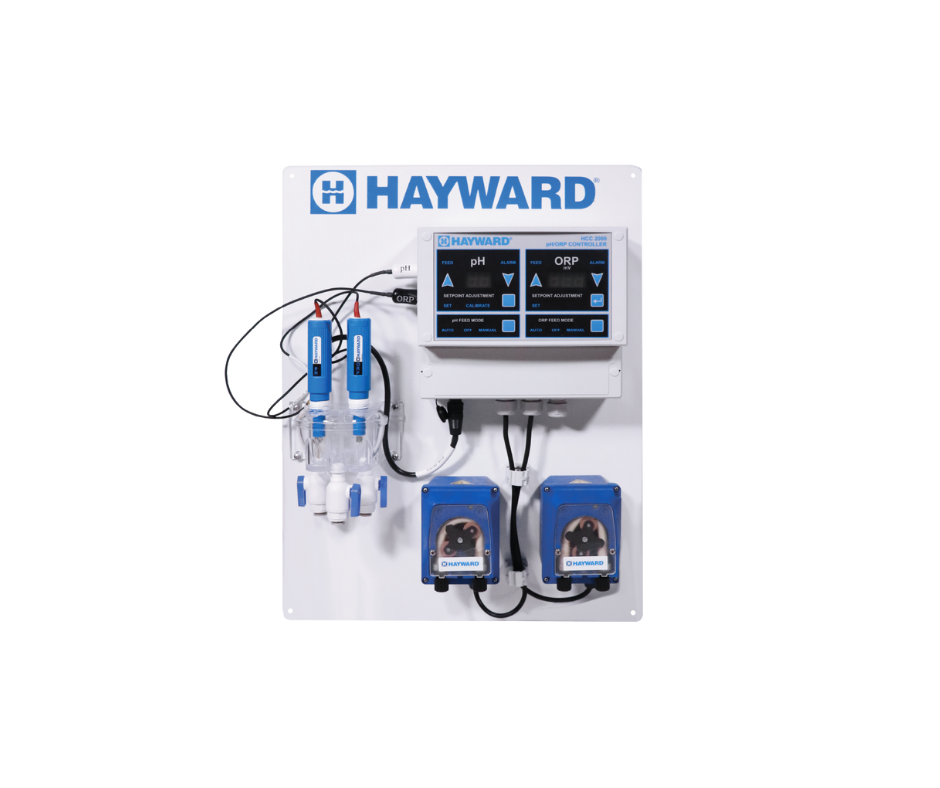

CC-HA-HCC2000-CP | Chemical Controller pH & ORP with 2 Chemical Feed Pumps Display Range pH 0.0-9.9/ ORP 5-995 MV,Power Input 240V-50/60 Hz Interface UV pretected Lexan membrane switch Flow Cell Injection molded Flow Cell with integral baffels Flow sensor Float-Style magnatic Flow Switch Pump Power supply 24-240 V,50/60 Hz/ GPD.6.34 Pump Tube Santoprene Max back pressure 22 PSI NEMA Rating 4x |
482 | 402 | 88 | 184 | 106 |
